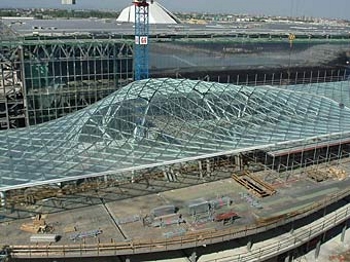

Cobertura Met�lica para a Feira de Mil�o
Localiza��o:	Mil�o, It�lia
Projecto:	B�ro Emmerling GmbH, Alemanha
Dados T�cnicos:	Peso total de 2.000,0t �rea coberta de 46.300m2 Comprimento de 1.3km e largura vari�vel entre 32,0 e 41,0m Altura m�xima de 16,0m Estrutura principal constitu�da por 190 pilares e 500 vigas Cerca de 2.300 desenhos em formato A0

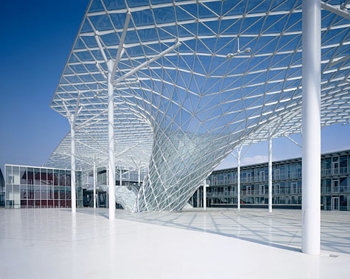

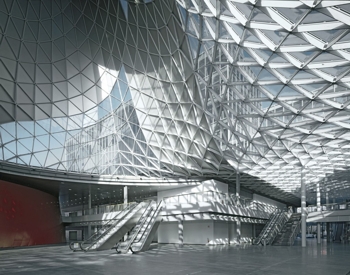

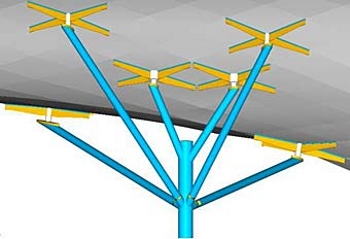

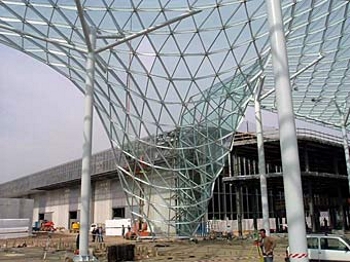

�The fair consists of 10 exhibition halls which are connected through a 1,3 km long axis. The axis is roofed by a freeform lattice roof construction, reminiscent of the Alps. The guests get an open-air experience without being exposed to wind and rain. This impression was reached using only 190 tree columns supporting the VELA. Due to automatic modeling of tree columns, crosses and leveling points in 3D in addition to automatic drawing creation to contractor requirements we saved 1.900 man-days. This is a time saving of 60%! This was due to innovative Advance technology and great cooperation by Graitec from the start of the project to help us efficiently and productively accomplish the project.� Mr. Hubert Emmerling, owner of Emmerling GmbH
